Motorised Beds

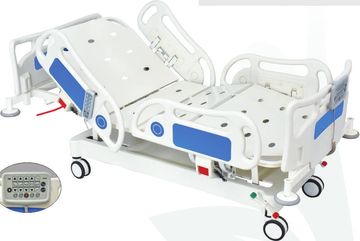

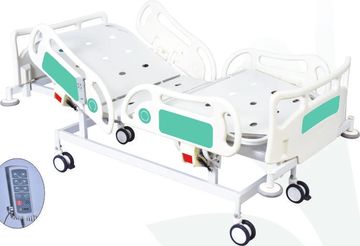

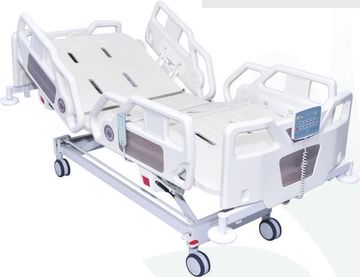

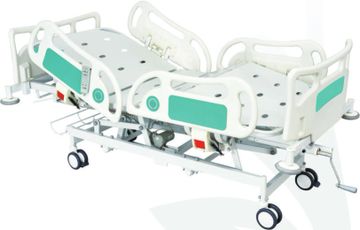

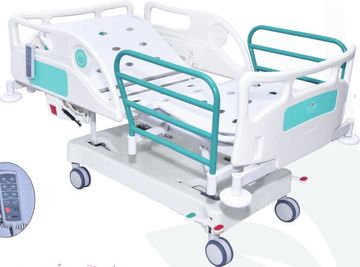

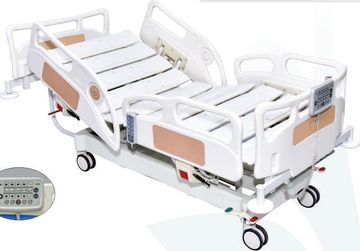

Motorised Bed FDM-1150
Technical Data
- 4 Motors
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84" x 42"
- Platform Dimension- 1900 mm x 900 mm (L x W) 75" x 35"
- Minimum Height without Mattress - 510 mm 20"
- Maximum Height without Mattress - 810 mm 32"
- Trendelenberg 0-15 degree
- Rev Trendelenberg 0-15 degree
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load-200 Kg

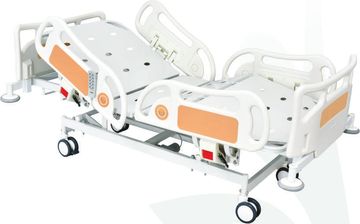

Motorised Bed FDM-1130
Technical Data
- 4 Motors
- Overall Dimension Buffer to Buffer 2260mm x 1070mm (L x W) 89" x 42"
- Platform Dimension- 2000mm x 890 mm (L x W) 78" x 35"
- Minimum Height without Mattress - 410 mm 16"
- Maximum Height without Mattress - 760 mm 30"
- Trendelenberg 0-15 degree
- Rev Trendelenberg 0-15 degree
- Backrest 0-70 degree
- Kneerest 0-35 degree
- Safe Working Load-200 Kg

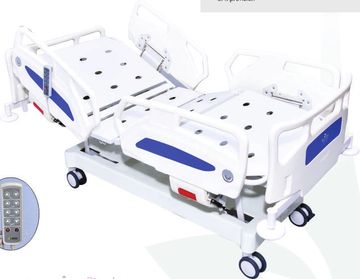

Motorised Bed FDM-1140
Technical Data
- 4 Motors
- Overall Dimension Buffer to Buffer 2300mm x 1080mm (L x W) 90" x 42"
- Platform Dimension 1900mm x 900 mm (L x W) 75" x 35"
- Minimum Height without Mattress 510 mm 20"
- Maximum Height without Mattress 810 mm 32"
- Trendelenberg 0-15 degree
- Rev Trendelenberg 0-15 degree
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load-200 Kg
Motorised Bed FDM-1151
Technical Data
- 4 Motors
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84" x 42"
- Platform Dimension 1900 mm x 900 mm( L x W) 75" x 35"
- Minimum Height without Mattress 510 mm 20"
- Maximum Height without Mattress 810 mm 32"
- Trendelenberg 0-15 degree
- Rev Trendelenberg 0-15 degree
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load-200 Kg
Motorised Bed FDM-1152
Technical Data
- 3 Motors
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84" x 42"
- Platform Dimension 1900 mm x 900 mm( L x W) 75" x 35"
- Minimum Height without Mattress 510 mm 20"
- Maximum Height without Mattress 810 mm 32"
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load 200 Kg
Motorised Bed FDM-1153
Technical Data
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84" x 42"
- Platform Dimension 1900 mm x 900 mm (L x W) 75" x 35"
- Minimum Height without Mattress 560 mm 22"
- Maximum Height without Mattress 790 mm 31"
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load 200 Kg
Motorised Bed FDM-1154
Technical Data
- Overall Dimension Buffer to Buffer 1800 mm x 1060 mm (L x W) 71" x 42"
- Platform Dimension 1520 mm x 800 mm( L x W) 60" x 32"
- Minimum Height without Mattress 450 mm 18"
- Maximum Height without Mattress 700 mm 28"
- Trendelenberg 0-15 degree
- Rev Trendelenberg 0-15 degree
- Backrest 0-75 degree
- Kneerest 0-40 degree
- Safe Working Load-150 Kg
Fowler Motorised Beds

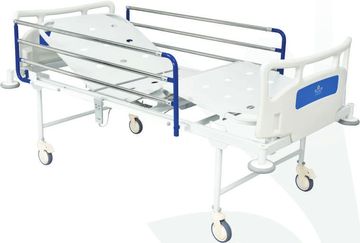

Fowler Motorised Bed FDM-1255
Technical Data
- 2 Motors
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84" x 42"
- Platform Dimension 1900 mm x 900 mm (L x W) 75" x 35"
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Fixed Height-610 mm without Mattress
- Safe Working Load 200 Kg
Fowler Motorised Bed FDM-1256
Technical Data
- 2 Motors
- Overall Dimension Buffer to Buffer 2060 mm x 975 mm (L x W) 81" x 39"
- Platform Dimension 1900 mm x 850 mm (L x W) 75" x 33"
- Backrest 0-65 degree
- Kneerest 0-40 degree
- Safe Working Load 125 Kg
Semi Fowler Motorised Beds
Semi Fowler Motorised Bed FDM-1258
Technical Data
- 1 Motor
- Overall Dimension Buffer to Buffer 2060 mm x 975 mm (L x W) 81" x 39"
- Platform Dimension 1900 mm x 850 mm (L x W) 75" x 33"
- Backrest 0-65 degree
- Safe Working Load 125 Kg

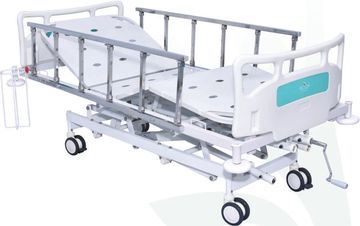

ICU Mechanical Beds

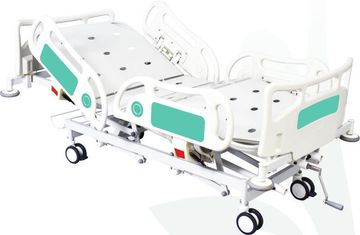

ICU Bed Mechanical FDM-1311
Technical Data
- Overall Dimension Buffer to Buffer 2185 mm x 1085 mm (L x W) 85" x 42"
- Platform Dimension 1900 mm x 900 mm (L x W) 75" x 35"
- Minimum Height without Mattress 560 mm 22"
- Maximum Height without Mattress 790 mm 31"
- Safe Working Load 150 Kg
ICU Bed Mechanical FDM-1312
Technical Data
- Overall Dimension Buffer to Buffer 2185 mm x 1085 mm (L x W) 85" x 42"
- Platform Dimension 1900 mm x 850 mm (L x W) 75" x 33"
- Minimum Height without Mattress 560 mm 22"
- Maximum Height without Mattress 790 mm 31"
- Safe Working Load 150 Kg
ICU Bed Mechanical FDM-1313
Technical Data
- Overall Dimension Buffer to Buffer 2150 mm x 1060 mm (L x W) 84" x 42"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height 610 mm 24"
- Safe Working Load 150 Kg

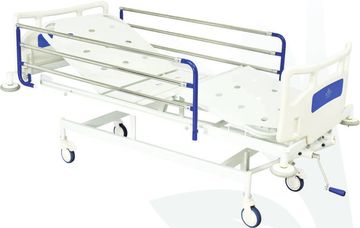

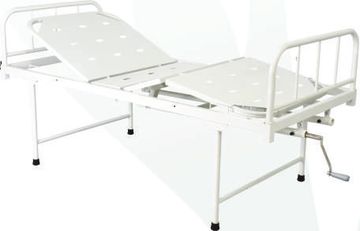

Fowler Mechanical Bed

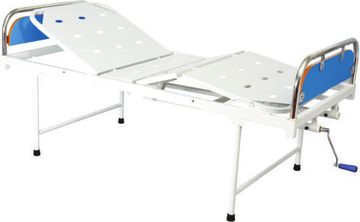

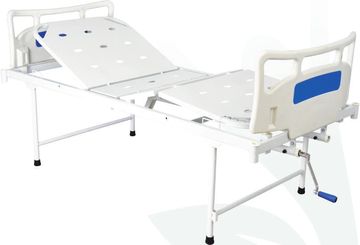

Fowler Bed Mechanical FDM-1412
Technical Data
- Overall Dimension Buffer to Buffer 2140 mm x 1080 mm (L x W) 84” x 42”
- Platform Dimension 1900 mm x 900 mm (L x W) 75" x 35"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Fowler Bed Mechanical FDM-1403
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 960 mm (L x W) 79" x 38"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Fowler Bed Mechanical FDM-1404
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 960 mm (L x W) 79"x38"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Fowler Bed Mechanical FDM-1413
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 900 mm (L x W) 79"x36"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg

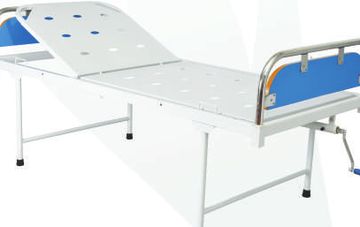

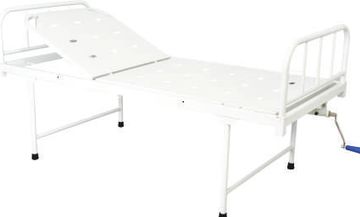

Semi Fowler Mechanical Bed

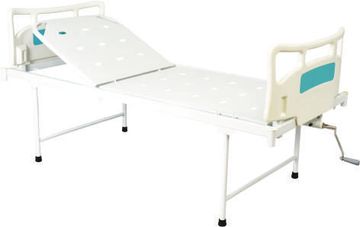

Semi Fowler Bed Mechanical FDM-1505
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 900 mm (L x W) 79” x 36”
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Semi Fowler Bed Mechanical FDM-1506
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 900 mm (L x W) 79" x 36"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Fowler Bed Mechanical FDM-1514
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 900 mm (L x W) 79"x36"
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Semi Fowler Bed Deluxe FDM-1511
Technical Data
- Overall Dimension Buffer to Buffer 1630 mm X 950 mm(L X W) 65" X 37"
- Platform Dimension 1480 mm X 720 mm( L X W) 58" X 28"
- Fixed Height-610 mm without Mattress
- Safe Working Load 100 Kg

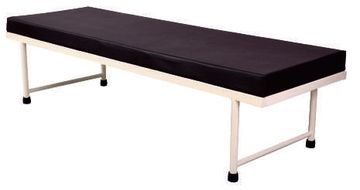

Plain Bed

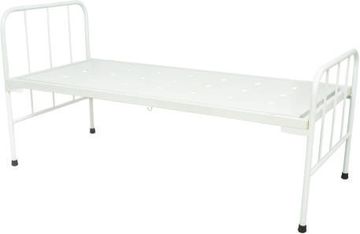

Plain Bed FDM-1412
Technical Data
- Overall Dimension Buffer to Buffer 2010 mm x 900 mm (L x W) 79” x 36”
- Platform Dimension 1900 mm x 840 mm (L x W) 75" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 150 Kg
Plain Bed Deluxe FDM-1511
Technical Data
- Overall Dimension Buffer to Buffer 1480 mm x 840 mm (L x W) 58" x 33"
- Fixed Height-610 mm without Mattress
- Safe Working Load 100 Kg
Attendant Bed FDM-1609
Technical Data
- Overall Dimension Buffer to Buffer 1830 mm x 610 mm x 510 mm (L x W x H) 72" x 24" x 20"
- Pre-treated and Epoxy Powder Coated Finish
- Legs Fitted with Rubber Shoes
- Fix Mattress with Rexine Cover
OPD Products

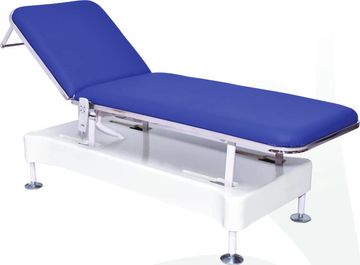

Motorised Examination Couch FDM-1770
Technical Data
- Overall Dimension Buffer to Buffer 1900 mm x 640 mm (L x W) 75" x 25"
- Maximum Height 810 mm (32") (including mattress)
- Minimum Height 510 mm (20") (Including mattress)
- Paper Roll Holder
- Leveler
- Height and Backrest Electrically Operated through Handset
- Two Section Top made up of Stainless Steel with Moulded Mattress
- Safe Working Load 150 Kg

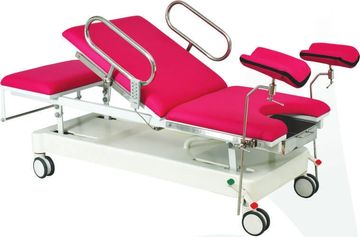

Motorised Gynaecology Examination Couch FDM-1771
Technical Data
- Over all approx dimension 1830 mm x 780 mm (L x W) 72" x 31"
- Three Section Top with Moulded Mattress
- Mattress Dimension 1830 mm x 660 mm (L x W) 72" x 26"
- Maximum Height 870 mm (34.5") (including mattress)
- Minimum Height 570 mm (22.5") (Including mattress)
- Paper Roll Holder
- Central Locking Casters 125 mm
- Weight Capacity 150 Kg
- Railing on Backrest Section
- Knee Crutches
- U Cut with Tray
- Foot Switch for all Motorised Movement (Optional Accessories)

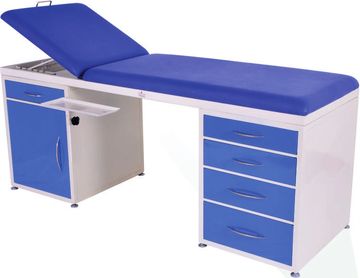

Examination Couch Deluxe FDM-1772
Technical Data
- Overall Dimension Buffer to Buffer 1880 mm x 610 mm x 810 mm (L x W x H) 74" x 24" x 32"
- Two Section Top with Moulded Mattress
- Back Rest Movement on Ratchet Machanism
- Five Drawers of different size to accommodate different items and one cabinet
- BP Apparatus Tray
- Leveler at base
- Mattress and drawer colour same for aesthetic look
- Pre-treated and Epoxy Powder Coated
- Paper Roll Holder (Optional Accessories)

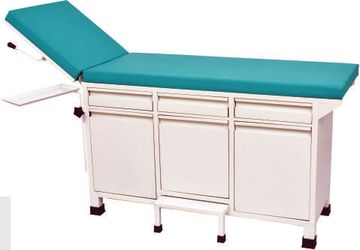

Examination Couch FDM-1773
Technical Data
- Overall Dimension Buffer to Buffer 1830 mm x 560 mm x 810 mm (L x W x H) 72" x 22" x 32"
- Two Section Top with Backrest on Gas Spring
- Three Drawer and Three Cabinet
- Sliding Footrest
- BP Apparatus Tray
- Pre-treated and Epoxy Powder Coated
- Paper Roll Holder (Optional Accessories)

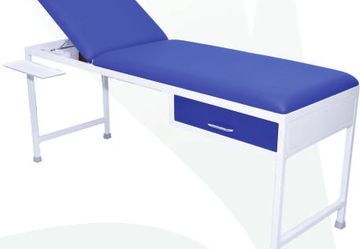

Examination Couch Semi Deluxe FDM-1779
Technical Data
- Overall Dimension Buffer to Buffer 1880 mm x 610 mm x 810 mm (L x W x H) 74" x 24" x 32"
- Two section Top with Moulded Mattress
- Back Rest Movement on Ratchet Mechanism
- One Drawer
- BP Apparatus Tray
- Mattress and drawer colour same for aesthetic look
- Pre-treated and Epoxy Powder Coated
- Paper Roll Holder (Optional Accessories)

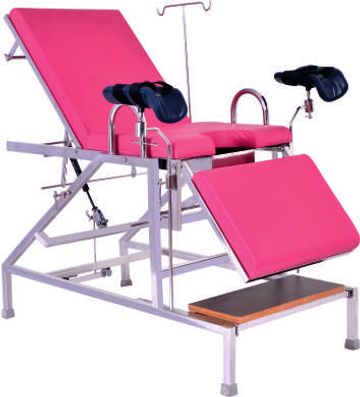

Gynae Examination Table Deluxe SS FDM-1774
Technical Data
- Overall Dimension Buffer to Buffer 1750 mm x 660 mm x 810 mm (L x W x H) 69" x 26" x 32"
- Three Section Top with Moulded Mattress
- U Cut in Center Part
- Backrest and Knee Rest Movement on Ratchet
- Trenedelenberg Position through Gas Spring
- Sliding Foot Rest
- Knee Crutches and SS Tray
- Paper Roll Holder
- Complete Stainless Steel 304 Construction
- Gynae Examination Table Deluxe is also available

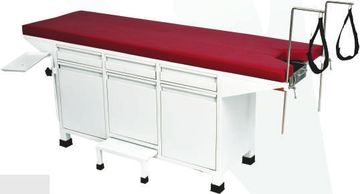

Gynae Examination Couch FDM-1778
Technical Data
- Overall Dimension Buffer to Buffer 830 mm x 560 mm x 810 mm (L x W x H) 72" x 22" x 32"
- Single Section Top
- Three Drawer and Three Cabinet
- Sliding Footrest
- BP Apparatus Tray
- UCut with Tray
- Lithotomy Rod with Belts
- Pre-treated and Epoxy Powder Coated
- Knee Crutches (Optional Accessories)

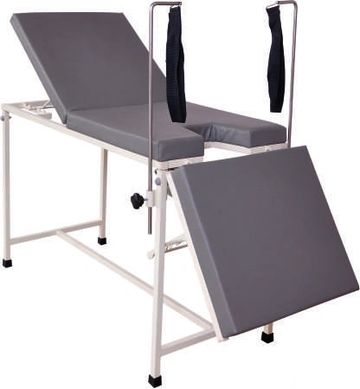

Gynae Examination Table FDM-1776
Technical Data
- Overall Dimension Buffer to Buffer 1830 mm X 560 mm X 810 mm (L x W x H) 72" X 22" X 32"
- Three section top with fix mattress
- U Cut in center part
- Backrest and Knee rest movement on ratchet
- Lithotomy rod and SS bowl
- UCut with Tray
- Lithotomy Rod with Belts
- re-treated and Epoxy Powder Coated

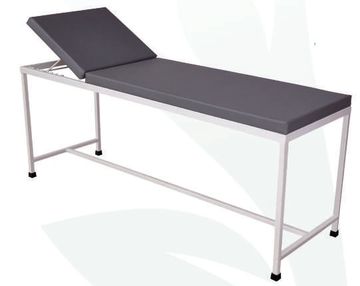

Examination Table FDM-1777
Technical Data
- Overall approx dimensions 1830 mm x 560 mm x 810 mm (L x W x H) 72" x 22" x 32"
- Two Section Top with Fix Mattress
- Backrest Movement on Ratchet
- Pre-treated and Epoxy Powder Coated
Transfer Products

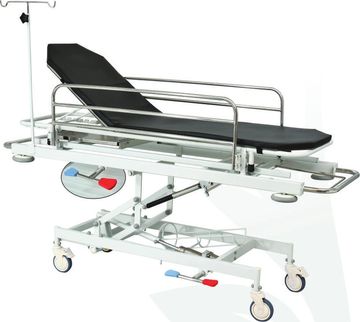

Emergency And Recovery Trolley FDM-1880
Technical Data
- 2050 mm x 710 mm (LxW) 81"x28"
- Height adjustable by Hydraulic Foot pump from 660 mm to 910 mm (26"-36")
- Two section X ray Permeable Removable Top
- Gas spring assisted Trendelenberg / Rev Trendelenberg Function
- Backrest Movement on Ratchet
- X ray Cassette Holder
- Cylinder cage, IV rod, Utility Tray
- Swing away Type Railing on both Side-SS
- Buffer on all corner
- Casters 125 mm, Two with lock
- Pre-treated and Epoxy Powder Coated
Stretcher Deluxe SS FDM-1881

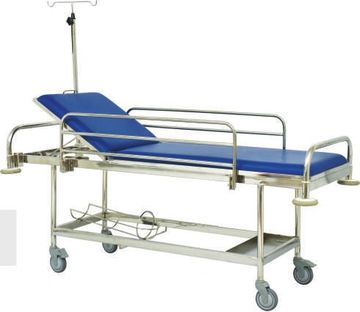

Technical Data
- Over all approx dimension 1970 mm x 670 mm x 810 mm (L x W x H) 78"x27"x32"
- Two Section Top with Moulded mattress
- Backrest Movement on Ratchet
- Cylinder Cage
- Swing away type railing on both Side-SS
- Buffer on all corner
- Casters 125 mm, Two with Lock
- Complete Stainless Steel Construction
- 150 mm non rusting Casters two with lock (Optional Accessories)
- Height adjustable heavy duty Stainless Steel IV pole (Optional Accessories)

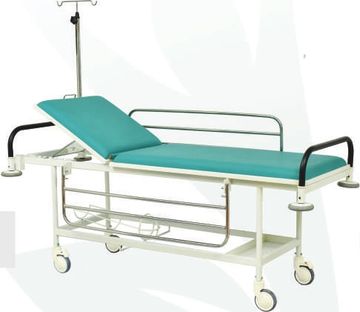

Stretcher Deluxe MS FDM-1882
Technical Data
- Overall approx dimensions 1970 mm x 670 mm x 810 mm (L x W x H) 78"x27"xX32"
- Two Section Top with Moulded Mattress
- Backrest Movement on Ratchet
- Cylinder Cage
- Swing away type railing on both Side-SS
- Buffer on all corner
- Casters 125 mm, Two with Lock
- Pre-reated and Epoxy Powder Coated
- 150 mm non rusting Casters two with lock (Optional Accessories)
- Height adjustable heavy duty Stainless Steel IV pole (Optional Accessories)

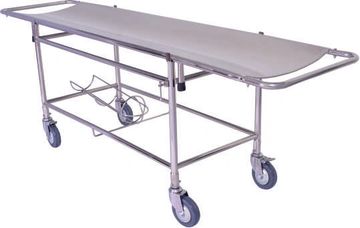

Stretcher on Trolley Fully SS FDM-1883
Technical Data
- Overall approx dimensions 2050 mm x 560 mm (L x W) 81"x22"
- Removable Stretcher Top
- Casters150 mm, Two with Lock
- Complete Stainless Steel Construction
Stretcher on Trolley SS Top FDM-1884
Technical Data
- Overall approx dimensions 2050 mm x 560 mm (L x W) 81"x22"
- Removable Stainless Steel Stretcher Top
- Casters150 mm, Two with Lock
- Trolley Framework Pre-treated and Epoxy Powder Coated
Stretcher on Trolley MS FDM-1885
Technical Data
- Overall Dimension Buffer to Buffer 2050 mm x 560 mm (L x W) 81"x22"
- Removable Stretcher Top
- Casters 150 mm, Two with Lock
- Pre-treated and Powder Coated

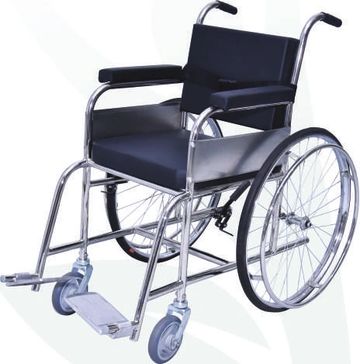

Wheel Chair Rigid SS FDM-1887
Technical Data
- Overall approx dimension 700 mm x 1050 mm x 980 mm (W x D x H) 28"x41"x39
- Front wheel 150 mm with Out Brake.
- Adjustable Aluminium Foot Rest
- Fixed Arm Rest
- Fixed Cushion Seat and Back Rest
- Wheel Chair Rigid (also available)

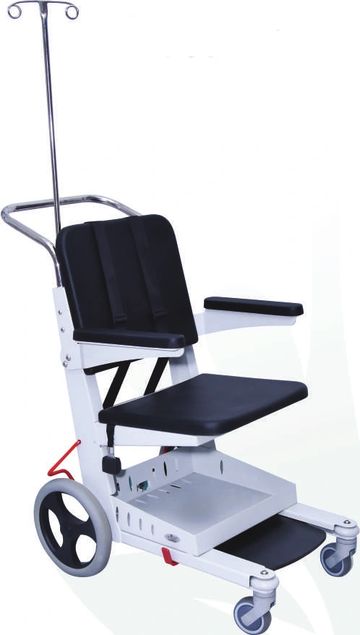

STURDY Wheel Chair FDM-1888
Technical Data
- Seamless Polymer Moulded Upholstery
- Rear castors ø 300mm with centralized brakes
- Front castors ø 100mm – ball bearing
- Retractable footrest with bilateral control
- Swinging arm rests with stopper
- Epoxy finished push bar
- Patient file holder
- Patient Clothes basket
- Front shock absorbers
- IV Rod
- Safety Seat Belt
- Weight Capacity 200kg
FairdealM
